System Settings

Supported since 2.9.0.

The system settings structure is as follows:

• schema.json (read-only) - Contains metadata for all settings, including names, types, ranges, and descriptions.
• default.json (read-only) - Contains the default values for all settings.
• user.json - Stores values modified by the user.
• effective.json (read-only) - Contains the final values, generated by overlaying user.json on top of default.json.

Only user.json is modifiable. Whenever it is updated, effective.json is automatically recalculated.

schema.json and default.json are read-only constants specific to the robot model.

Schema

curl http://192.168.25.25:8090/system/settings/schema

{
   "ax":[
      {
         "name":"robot.footprint",
         "title":"Robot: Footprint",
         "type":"Polygon",
         "default":[
            [
               0.248,
               0.108
            ],
            ["..."],
            [
               0.248,
               -0.108
            ]
         ]
      },
      {
         "name":"control.auto_hold",
         "title":"Control: Auto Hold",
         "type":"bool",
         "default":true,
         "description":"When idle, the robot shall hold still"
      },
      {
         "name":"control.max_forward_velocity",
         "title":"Control: Max Forward Velocity",
         "type":"float",
         "default":1.2,
         "range":"[0, 2.0]"
      },
      {
         "name":"control.max_backward_velocity",
         "title":"Control: Max Backward Velocity",
         "type":"float",
         "default":-0.2,
         "range":"[-0.3, 0]"
      },
      {
         "name":"control.max_forward_acc",
         "title":"Control: Max Forward Acc",
         "type":"float",
         "default":0.5,
         "range":"[0, 0.8]"
      },
      {
         "name":"control.max_forward_decel",
         "title":"Control: Max Forward Decel",
         "type":"float",
         "default":-2.0,
         "range":"[-2.0, 0]"
      },
      {
         "name":"control.max_angular_velocity",
         "title":"Control: Max Angular Velocity",
         "type":"float",
         "default":1.2,
         "range":"[0, 1.2]"
      },
      {
         "name":"control.acc_smoother.smooth_level",
         "title":"Control: Acc Smoother: Smooth Level",
         "type":"Enum",
         "default":"normal",
         "options":[
            "disabled",
            "lower",
            "normal",
            "higher"
         ]
      },
      {
         "name":"bump_based_speed_limit.enable",
         "title":"enable bump-based speed limit",
         "type":"bool",
         "default":true
      },
      {
         "name":"bump_based_speed_limit.bump_tolerance",
         "title":"Bump Based Speed Limit: Bump Tolerance",
         "type":"float",
         "default":0.5,
         "range":"[0, 1.0]"
      }
   ]
}

Default Settings

curl http://192.168.25.25:8090/system/settings/default

User Settings

Retrieve user settings:

curl http://192.168.25.25:8090/system/settings/user

Save user settings:

curl -X POST \
    -H "Content-Type: application/json" \
    -d '...' \
    http://192.168.25.25:8090/system/settings/user

Partial update of user settings:

curl -X PATCH \
    -H "Content-Type: application/json" \
    -d '...' \
    http://192.168.25.25:8090/system/settings/user

Effective Settings

curl http://192.168.25.25:8090/system/settings/effective

Setting Options

This section documents available configuration options.

rack.specs

Defines the physical dimensions of a rack and how the robot should interact with it.

{
   "rack.specs": [
      {
         "width": 0.66,
         "depth": 0.7,

         // Some racks have protruding parts (e.g., handles) that
         // extend beyond the wheel base.
         "margin": [0, 0, 0, 0],

         "alignment": "center",  // center/back.
         "alignment_margin_back": 0.02,

         // Some rack legs have base plates that are invisible to the laser scanner.
         // The robot will avoid this extra area when moving underneath the rack.
         "extra_leg_offset": 0.02,

         // Since 2.10: square/round/other
         "leg_shape": "square",

         // Since 2.10: The side length of a square leg, or the diameter of a round leg.
         "leg_size": 0.03,

         // Since 2.10. Some racks have caster wheels that are invisible to
         // the robot's lasers. Use this parameter to expand the robot's
         // footprint and prevent collisions.
         "foot_radius": 0.05
      }
   ]
}

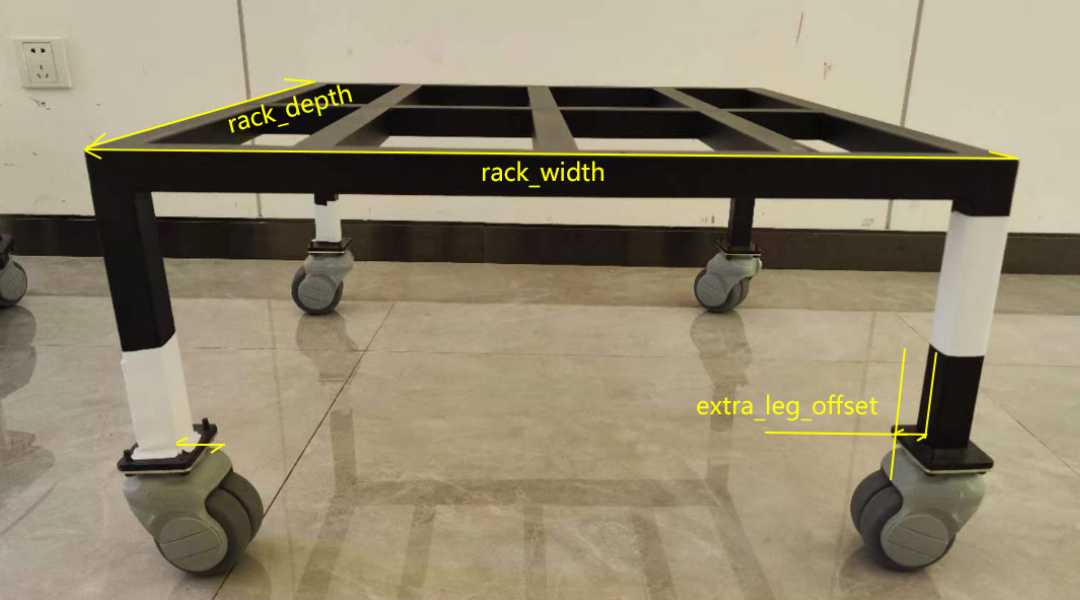

• width, depth: The dimensions of the rack.
• margin: Accounts for protruding parts outside the rectangle formed by the legs.
• extra_leg_offset: Accounts for inward-protruding legs that are not visible to the LiDAR.

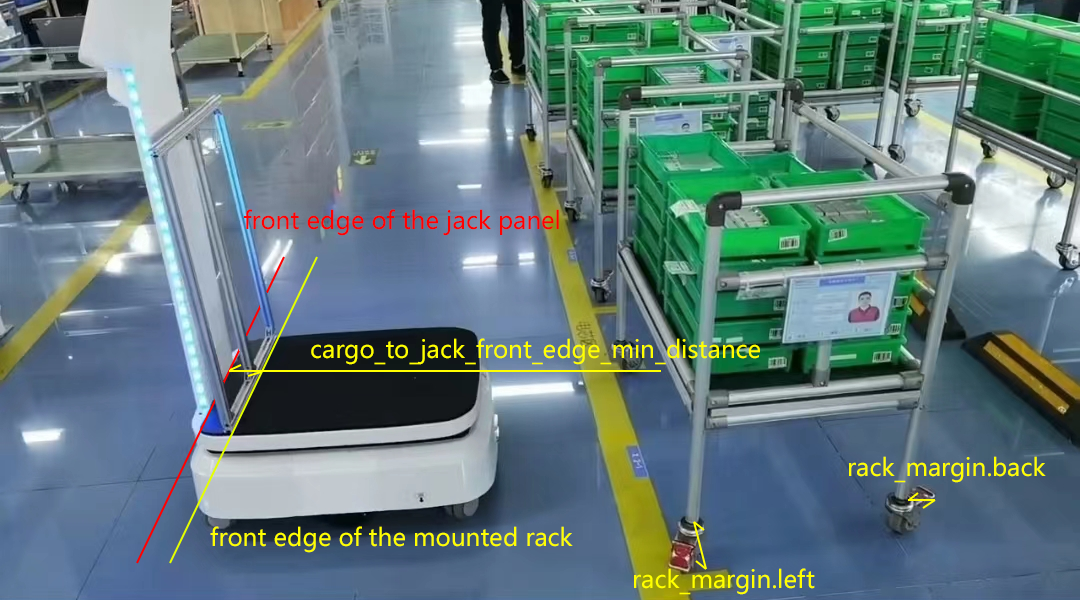

• cargo_to_jack_front_edge_min_distance: The distance between the front edge of the rack and the front edge of the jack panel when the rack is mounted.
